semi automatic carton stitcher machine double piece

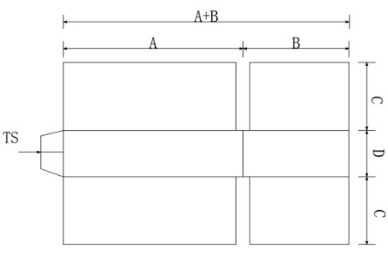

1.Technical

2,Main parts introduce:

Servo motor drive imported from Delta Motor , Accurate precision, reduce the mechanical transmission parts, can effectively reduce the mechanical failure rate.

The whole control system adopts Delta PLC control system

Control the contactor in the cabinet are all made of Germany's Siemens brand.

Relays, circuit breaker adopts French Schneider brand, photoelectric and proximity switch adopts Autonics Korea brand..

Bottom die , blade adopt Japan's tungsten steel production (wear)

The whole stitch head adopt specifical tungsten, CNC precision machining

Change carton size and adjust carton nail distance only take one minute can be completed, greatly save time it is easy to operate.

Can nail box & has a lid without cover carton box (with and without cover is required at time of order to nail in mechanical specification).

After a period of automatic counting function, completes the product number can be set according to the number (1-99) fold, to the end

of the conveying machinery, convenient packing banding.

Machine speed: 600 nail/min

Nail distance: 30-150mm Arbitrary adjustable

A dual purpose, it can stitch single piece and double piece,and irregular carton.

Size adopt full computerized control, change size only take 2-3mins

Can stitch strengthen nail, single nail , double nail, once complete

Feed automatic counting, finished product is sent out banding

Suitable for small and medium carton, binding quickly and save labor, there

is no limit to the technology:

Adjustment nail distance , use computer set up ,

adjust nail distance automatically, nail distance 30-150mm arbitrary adjustable

The machine adopts computer screen display failure.

The bottom without cover carton also can nail (special)

Used three layer, five layer corrugated cardboard, seven layers

(seven layers need special instructions)

The whole machine order adjustment (optional)

3.Main Configuration
